Lab 12 Building your own objects

Download the Peeper folder from lab11_programs folder from the CS111 download folder. You'll edit Peeper.java in order to create the picture below.

You're going to write a java program that has two classes. There is a Peeper class and an Eyes class. The Peeper class has the methods that create pictures made of pairs of eyes, and the Eyes class definition will define Eyes objects using their instance variables, constructor method and instance methods.

Three things you need to know:

1. The origin (0,0) of our graphics coordinate system is in the upper left hand corner (unlike BuggleWorld)

2. An Eyes object (one Eyes object is actually a pair of eyes) looks like this:

3. Here's how to draw the Eyes object:

In order to make the Eyes, we have to do 3 things:

1. Define the instance variables
2. Define the constructor method
3. Write an instance method to draw the Eyes, to find out the values of its parameters, and to change these values.

1. Defining the instance variables

Eyes objects are defined by the following variables:

int width	The width of an eye
int bridge	The distance from the left side of one eye to the left of the other. Set it to width + width/3 in the constructor
Point position	The position of the upper left corner
Color eyeColor	The Color of the eye background
Color pupilColor	The Color of the pupil
Graphics gfx	The graphics object for drawing to the right part of the applet window

Define these variables at the top of the Eye class

2. Defining the Constructor method

The constructor method should initialize the instance variables to the given values when an eye object is created.

To draw correctly to the applet's Canvas, the Eyes object needs to have access to the Graphics object from the paint method. The easiest way to do this is to use a parameter in the constructor method (this is the "Graphics g" parameter in the method definition). The Eyes object can keep track of this object by assigning its value to the "gfx" instance variable, as follows:

	gfx = g;

3. Writing the drawEyes() method

Use the java graphics methods drawOval and fillOval to draw the Eyes above. Want to know more about these methods? Click here for the Java API.

4. Testing your methods with theBeatles() method

Now you can fill in the code for the method theBeatles in the Peeper class. It creates 4 pairs of eyes with the following parameters:

eyes	eyeColor	pupilColor	position	width
john	red	yellow	(10,130)	40
paul	blue	white	(150,125)	25
ringo	cyan	magenta	(280,250)	65
george	orange	blue	(350,120)	90

5. Instance Methods for the Eyes Class

Now you are ready to write some eyes methods, such as setting eye background color, the pupil color, the position of the eyes, and the width of the eyes. The methods names are as follows:

	public void setEyeColor(Color c)
		Set the eye color of the Eyes to c.

		public void setPupilColor(Color c)
		Set the pupil color of the Eyes to c.

		public Color  getEyeColor()
		Return the color of the eye.

		public Color  getPupilColor()
		Return the color of the pupil.

		public void setPosition(Point p)
		Set the new eyes position to be the point p.

		public Point getPosition()
		Returns the position of the eyes.

		public int getWidth()
		Returns the width of the eyes (the value of the instance variable width).

		public void resize(int new_width)
		Set the width of the eyes to new_width.
		Note that the bridge must change, too.

		public int getTotalWidth()
		Returns the total width taken up by the eyes plus some padding needed
		to draw two pairs of eyes one right next to the other.
		I used 2*bridge + width/5 in my pictures, but feel free to change it.

		public int getTotalHeight()
		Returns the total height of the eyes plus some padding.
		I used (2*width)/3 + width/5 in my pictures.




1. Tiling a picture of the eyes:


   public void tile(Graphics g, Eyes e)


   The method takes the picture of eyes and repeats it on the applet screen as many times as possible, row by row. The width of the screen is 600, the height is 400. It's OK if your pictures go over the border of the sceern slightly.

   You should use nested loops (for or while) to draw the pattern. In order to draw the eyes in the new spot, use the method setPosition() of Eyes. The result of the method invocation


   tile(g, new Eyes(g, 20, new Point(1,5), Color.black, Color.magenta));


   is below:



2. Tiling a given picture with alternating colors:


   public void alternate(Graphics g, Eyes e)


   The method is similar to the previous one, but the colors of the eye and the pupil ae switched from one picture to the next. The method invocation


   alternate(g, new Eyes(g, 40, new Point(1,5), Color.blue, Color.cyan));


   gives the following picture:



3. The method


   shadows(Graphics g, Eyes e)

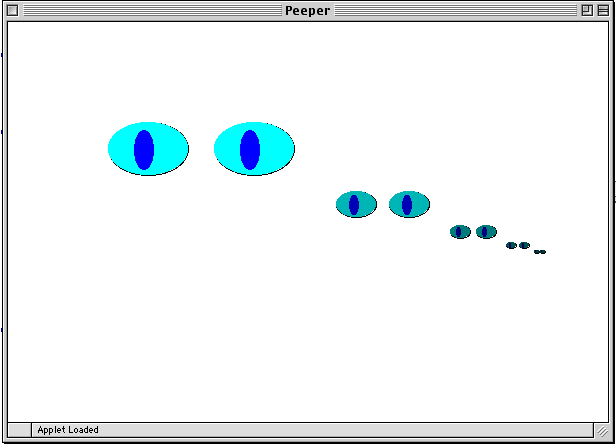

   takes a picture of the eyes and draws it with "shadows" (darker, smaller copies of the eyes picture at its right lower corner). For example, the invocation


   shadows(g, new Eyes(g, 80, new Point(100,100), Color.cyan, Color.blue));

   gives the following picture:



   Use the Color method darker() to make the color darker.

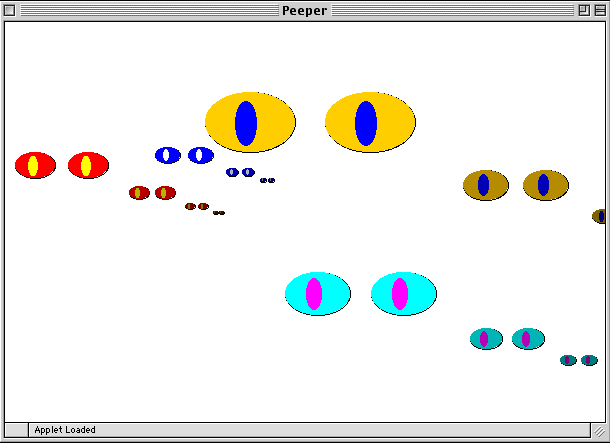

   Now use the shadows method to draw the Beatles eyes picture with shodows in
   the method theBeatlesWithShadows(g):
