CS111, Wellesley College, Spring 2002

Problem Set 2

Due: Tuesday, February 19 by 11 pm

[CS111 Home Page] [Syllabus] [Assignments] [Documentation] [FAQ] [CS Dept.] [CWIS]

About this Problem Set

This problem set is intended to help you understand how Java works and to give you practice using, designing, and writing methods. This problem set consists of a paper-and-pencil problem, two programming problem, and an extra credit programming problem. There is a contest associated with the extra credit problem (please see below).

To get the code for this assignment, connect to cs111 server via Fetch and download the folder ps2_programs from the directory /cs111/download.

How to turn in this Problem Set

Save the modified RugWorld.java and FontBuggle.java files in the ps2_programs folder. Submit the entire ps2_programs folder to your drop folder on the cs111 server. Turn in a hardcopy of the JEM diagram from task 1 and your modified Writing2.java, RugWorld.java, FontBuggle.java, and HuggleWorld.java

When submitting your hardcopies, we ask that you turn in only one package of materials. Please staple your files together with a cover page, and submit your hardcopy package by sliding it under the door of Elena's office (E127, in minifocus).

IMPORTANT NOTES:

  1. Pay careful attention to upper and lower case letters in the filenames.
  2. Once you have used Fetch to upload a file to the cs111 server, you should be sure to doublecheck that the file was actually uploaded. You can do this in Fetch by verifying that the file is now listed in your directory. Not only should you check that the file is listed, but you should check that it does not have a size of 0K. If the file isn't listed or if the size for the document is 0K, this means that there was an error in transferring it via Fetch and you must re-upload the document. When transferring a folder, you should check that its contents have been uploaded correctly. That is, you should be sure to check that every single file that you wish to submit has been uploaded correctly. Often times, although not always, you will see a message "Connection Failed" when there is an error in transferring your files.
  3. It is your responsibility to keep a personal back-up of every file that you submit electronically until you have received a grade for the assignment. Please make sure to keep a copy of your work, either on a zip disk, or in your private directory (or, to play it safe, both).

Task 1: Java Execution Model

In this part of the homework, you will use the Java Execution Model to draw an Execution Diagram that summarizes the execution of a simple Buggle program. It is important to become familiar with the conventions for drawing Execution Diagrams, since they are an important tool for explaining the behavior of Java programs. In particular, Execution Diagrams explain the meaning of method invocation, parameter passing, local variable declarations, and the this variable. You will be expected to draw an Execution Diagram on Exam 1.

Before continuing with this problem, please study the conventions for drawing execution diagrams (i.e. your notes from lecture and the reading for this problem set).

Your JEM Assignment

Below are the declarations for two classes: a SwapWorld class that is a subclass of BuggleWorld and a SwapBuggle class that is a subclass of Buggle.


public class SwapWorld extends BuggleWorld {
  public void run () {
    SwapBuggle bg1 = new SwapBuggle();
    SwapBuggle bg2 = new SwapBuggle();
    SwapBuggle bg3 = new SwapBuggle();
    Point pt1 = new Point(6,3);
    Point pt2 = new Point(4,5);
    bg1.setPosition(pt1);
    bg2.setPosition(pt2);
    bg3.setPosition(new Point(pt1.x-pt2.x, pt1.y+pt2.y));
    bg2.setColor(Color.blue);
    bg1.setColor(Color.green);
    bg2.left();
    bg3.right();
    bg2.swap(bg3);
    bg3.swap(bg1);
  }
}

class SwapBuggle extends Buggle {
public void swap (Buggle bg1) {
    Point pt1 = this.getPosition();
    Point pt2 = bg1.getPosition();
    Color c1 = this.getColor();
    Color c2 = bg1.getColor();
    this.setPosition(pt2);
    bg1.setPosition(pt1);
    this.setColor(c2);
    bg1.setColor(c1);
  }
}

Suppose that Object Land contains an instance of the SwapWorld class that has the reference label SW1. Your assignment is to draw an Execution Diagram for the execution of the statement

SW1.run()

Please be careful. This code is specifically designed to be tricky in a number of places. Be sure to pay attention to the following:

Task 2: Buggle Name Writing using Methods

It is possible to use methods to expand the capabilities of the buggle name writing program from problem set 1. For example, using a larger grid, but fewer actual lines of code, a buggle can write the word "JAVA" multiple times, around the perimeter of the grid, as shown below:

Your assignment:

Using methods, create the above grid. The file Writing2.java contains Java code which creates a larger grid and defines a LetterBuggle, a new class of objects which extends the Buggle class. A new LetterBuggle named ellie has also been created for you, along with two LetterBuggle methods; writeName, and writeJ, as shown below:

// write the word "JAVA" around the perimeter of the grid

public void run () {
  LetterBuggle ellie = new LetterBuggle();
  ellie.writeName();

  // add your code here
  // statements which will write the word "JAVA" around the perimeter of the grid

}


class LetterBuggle extends Buggle {

  // write the word "JAVA", in the appropriately colored letters, by setting the color,
  // and then by invoking methods for writing the individual letters
  public void writeName () {


    // fill in with statements which will position this Buggle correctly to start writing


    this.setColor(Color.blue);
    this.writeJ();    // write the first "J", in blue

    // add your code here
    // statements which will write the "A V A" in the correct colors
  }


  //write the letter "J"
  public void writeJ() {
    this.left(); // face NORTH
    this.forward(); // draw hook in lower left of "J"

    // add your code here
    // the rest of the statements for writing a "J"

  }

  // add your code here
  // methods for writing the other letters in the word

}
Perform the following steps to solve the problem: You must conform to the following rules:
  1. You may not invoke the "setPosition" or "setHeading" methods.
  2. You should use the methods "brushUp" and "brushDown" where appropriate.
  3. Each letter except "V" should fit in a 4x5 grid, and should be separated from the next letter by one blank space.
  4. The letter "V should occupy a 3x5 grid as shown.
  5. Ellie must draw the letters in the appropriate colors (use "setColor" to change colors).
  6. Ellie must end up in the position shown above, facing the correct direction (EAST).
  7. Use methods to solve the problem.

Task 3: The Buggle Bagel Ruggle Company

Important note: Before you begin working the second task, make sure to close the project that you were using for the first task by choosing Close from the File menu to close . Then double-click on the RugWorld.mcp icon to open the second project.

Alternatively, to be on the safe side (i.e. to make sure that you are not running the code from the previous task instead of the new one), you might want to quit CodeWarrior entirely and reopen it for the new project. To do this

  1. quit CodeWarrior (File -> Quit),
  2. quit the Applet Runner by selecting Apple Applet Runner from the menu of active applications in the upper right corner of the screen, then choosing Quit from the File menu,
  3. double-click on the RugWorld.mcp icon to open the second project
The buggles from Problem Set 1, becky, bobby, bertie, billy and benny, had the foresight to copyright their Buggle Olympic Symbol. As a result, they made a killing on the use of the logo for Buggle Olympics memorabilia and merchandise. So, they decided to invest in a rug-making enterprise: The Buggle Bagel Ruggle Company, which designs and weaves rugs made by dropping bagels in interesting ways on a BuggleWorld grid.

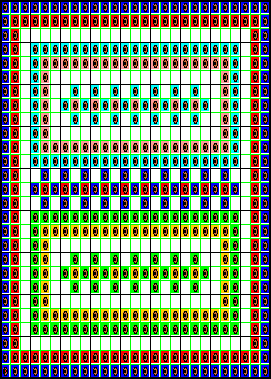

Here is an example of a rug they created:

The buggles are great designers, but, unfortunately, they don't know much about manufacturing. It takes so long to hand-drop the bagels individually that it's impossible to make any money. Luckily for them, there is a way to automate the production of the rugs. As it turns out, the design shown above can be produced using just 4 different 3x3 grids of bagel patterns:

pattern 1

pattern 2

pattern 3

pattern 4

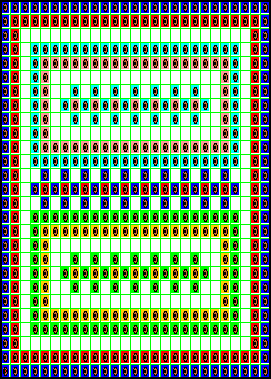

The rug itself is created by placing these patterns side by side to tile the entire rug. The rug, divided into 3x3 grids (outlined in black lines), is shown below:

The rug pattern includes a lot of repetitive patterns. This means that there are many opportunities for using methods to generate the pattern efficiently. Your task is to write the code which will create the rug pattern shown above in the most efficient manner you can think of. The code for this problem is contained in the RugWorld folder. The file RugWorld.java contains the initial set-up for creating the rug shown above. becky, bobby, bertie, benny and billy have hired a RugBuggle (another new class of objects which extends the Buggle class) named weaver to produce the rugs. You should add your code to this file, but you should not remove any existing code.

You must observe the following constraints:

Helpful Hints:

Extra Credit Task 4: HuggleWorld

Also see the contest conditions below!

Background

The Story

Fontaine Buggle is very impressed by the creative work of her cousins at the Buggle Bagel Ruggle Company. But she thinks that buggles can use their considerable talents to do more than just drop bagels in interesting patterns.

Inspired by the buggle writing problem of Problem Set 1 (remember "Ellie"?), Fontaine wants buggles to be able to write words using letters of any color drawn in rectangles of arbitrary size and orientation. As a simple example of what can be done with this capability, Fontaine designs the following Valentine card:

Valentine Figure

The card uses the seven letters 'C', 'd', 'G', 'H', 'I', 'P', and 'U'. Note that the 'U' appearing in "CUPId" and "HUG" has the same basic shape even though it is written in rectangles of different sizes (a 5x5 rectangle in the case of the 'U' in "CUPId" and a 7x17 rectangle int the case of the 'U' in "HUG").

Letter Methods and their Contracts

Fontaine recognizes that methods can be used to capture the similarity in shape while abstracting over the color and rectangle size. She defines a new FontBuggle class that is a subclass of Buggle extended with methods that draw the seven letters of the Valentine card. For example, the FontBuggle class has a method for drawing the letter 'U' according to the following contract:

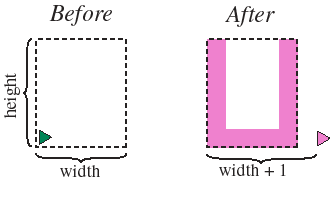

public void U (Color col, int width, int height);

Assume the initial brush state of this buggle is down. Consider the width by height rectangle such that this buggle is in the lower left hand corner facing along the width edge. Executing this method causes this buggle to draw the letter 'U' inscribed in the rectangle, as shown below. The heading of the buggle should not change, but its final position should be width + 1 cells in front of its original position, its final color should be col, and its final brush state should be down.

Fontaine defines similar methods for the other six letters, whose contracts are the same as that for U() except for the shape inscribed in the rectangle. The shapes drawn by the C(), d(), G(), H(), I(), and P() methods are depicted below:

Java Arithmetic

The dimensions in the above pictures are given in terms of Java integer arithmetic. Java integer arithmetic is pretty much what you would expect except that division of two integers always yields the integer that results by truncating (not rounding) the decimal portion of the exact result. For example:

n

n/2

n/3

n/4

5

2

1

1

6

3

2

1

7

3

2

1

8

4

2

2

9

4

3

2

The following equations are also always true (both in Java arithmetic and traditional arithmetic):

1 + (n/2) = (n + 2)/2

1 + ((n - 1)/2) = (n + 1)/2

The reason that we prefer the left-hand side versions to the right-hand side versions in the above diagram is that the left-hand side versions turn out to be more useful when drawing the letters with buggles. (See the note on fencepost errors in the tasks section, below.)

You should also convince yourself that in Java integer arithmetic, the following equation is always true (this equation is not true for traditional arithmetic!):

n = 1 + ((n - 1)/2) + (n/2)

Stringing Letters Together

The final position and heading of a FontBuggle after drawing a letter is designed to facilitate stringing letters together to form words. If the FontBuggle is asked to draw a new letter, both letters will be on the same "baseline", and there will be one cell of space between the previous letter and the new one. For example, consider the following method for drawing the word "CUP":

public void CUP () {
  C(Color.blue, 3, 5);
  U(Color.green, 8, 3);
  P(Color.red, 4, 12);
}

Invoking the CUP() method on a FontBuggle causes it to draw the following letters:

Buggle Jumping

Since letters do not always directly follow one another, it is useful to have the following jump() method, which changes the relative position of a FontBuggle by fwd units in the forward direction and lft units to its left. (Either number may be 0 or negative.)

	public void jump (int fwd, int lft) {
	  brushUp();
	  forward(fwd);
	  left();
	  forward(lft);
	  right();
	  brushDown();
	 }

Because the parameters to jump() are relative to the buggle's current position and heading, the method works regardless of the buggle's initial state. After jumping, it is often desirable to turn the buggle; the following three methods abstract over the three possible ways of turning:

	 public void jumpAndTurnLeft (int fwd, int lft) {
	   jump(fwd,lft);
	   left();
	 }

	 public void jumpAndTurnRight (int fwd, int lft) {
	   jump(fwd,lft);
	   right();
	 }

	 public void jumpAndTurn180 (int fwd, int lft) {
	   jumpAndTurnLeft(fwd,lft);
	   left();
	 }

As an example of buggle jumping, consider the following method:

	public void fourCUPs () {
	  CUP();
	  jumpAndTurnLeft(4, 0);
	  CUP();
	  jumpAndTurnLeft(4, 0);
	  CUP();
	  jumpAndTurnLeft(4, 0);
	  CUP();
	  jumpAndTurnLeft(4, 0);
	}

Invoking fourCups() on a FontBuggle at position (3,3) facing eastward yields the following picture:

fourCUPs Figure

As another example of buggle jumping, consider the following testFont() method that draws the C(), d(), G(), H(), I(), P(), and U() shapes for 5x5, 4x4, 3x5, 4x4, and 4x3 rectangles for both the east and north buggle orientations:

	public void testFont() {
	  testSizes();
	  jumpAndTurnLeft(27,0);
	  testSizes();
	}

	public void testSizes() {
	  testLetters(5,5);
	  jump(-42,6);
	  testLetters(4,5);
	  jump(-35,6);
	  testLetters(3,5);
	  jump(-28,6);
	  testLetters(5,4);
	  jump(-42,5);
	  testLetters(5,3);
	  jump(-42,4);
	}

	public void testLetters(int w, int h) {
	  C(Color.red, w, h);
	  d(Color.green, w, h);
	  G(Color.black, w, h);
	  H(Color.blue, w, h);
	  I(Color.yellow, w, h);
	  P(Color.magenta, w, h);
	  U(Color.cyan, w, h);
	}

Executing testFont() should yield the following result:

FontTest Figure

Your Tasks

Your tasks in the problem are to define the following eight FontBuggle methods:

You should begin the problem by downloading the HuggleWorld folder from the CS111 download folder. This folder has a file FontBuggle.java that contains skeletons of the eight methods you should define, as well as the jump(), jumpAndTurnLeft(), jumpAndTurnRight(), and jumpAndTurn180() methods described above.

The HuggleWorld folder also contains three .html for testing your methods:

Note that the applets depend on the letter methods and do not work correctly until all the letter methods are written.

Hints/Notes:

Contest (Everyone should read the following!)

One advantage of methods is that they can be used to significantly shrink the size of a program, as measured by the number of lines of Java code. For the HuggleWorld program, we are having a contest to see how small you can make your FontBuggle class and still have it work correctly. The name of the winner will be announced in the online conference and posted on the class web page!

Traditionally, program size is measured by the number of lines in the program. Because this metric is very sensitive to the way you format your program (commenting, use of whitespace, placement of squiggly brackets, etc.), we will use a way of measuring the size of a Java program that is insensitive to formatting factors. In particular, we define the following two notions:

  1. The size of a method is one more than the number of statements in the body of the method. The extra one counts the "declaration header" of the method as a statement.
  2. The size of a class is the sum of the sizes of all the methods in the class.

For instance, the size of the jump() method described above is 7, while the three methods jumpAndTurnRight(), jumpAndTurnLeft(), and jumpAndTurn180() each have size 3. So these four methods contribue 16 to the size of the FontBuggle class.

To enter the contest, all you need do is calculate the size of your FontBuggle class and write it on your problem set cover sheet.

We would like to point out that, while making your program shorter is fun and may be a helpful exercise, in general it should not be your goal to make a program shorter. Shorter programs often lack clarity, and since programs are written not only for machines to execute, but also for humans to read, clarity is a far more important goal!

Some rules/hints:
