CS111, Wellesley College, Fall 2007 Problem Set 2 Due Date Extended By One Week! Now due Tuesday September 25 at the start of class

About this Problem Set

To get the code for this assignment, connect to the cs111 download directory via Fetch and download the folder ps02_programs.

How to turn in this Problem Set

Save the modified Writing2.java and RugWorld.java files in the ps02_programs folder. Submit the entire ps02_programs folder to your drop folder on the cs111 server. Turn in a hardcopy of the JEM diagram from task 1 and your modified Writing2.java and RugWorld.java files. If you chose to work on the ungraded challenge problem, you should also turn in the FontBuggle.java and HuggleWorld.java files.

When submitting your hardcopies, turn in only one package of materials. Please staple your files together with a cover page, and submit your hardcopy at the start of class on the due date. Dont forget to put one of the instructors' stickers on the cover page!

IMPORTANT NOTES:

1. Pay careful attention to upper and lower case letters in the filenames.
2. Once you have used Fetch to upload a file to the cs111 server, you should be sure to doublecheck that the file was actually uploaded. You can do this in Fetch by verifying that the file is now listed in your directory. Not only should you check that the file is listed, but you should check that it does not have a size of 0K. If the file isn't listed or if the size for the document is 0K, this means that there was an error in transferring it via Fetch and you must re-upload the document. When transferring a folder, you should check that its contents have been uploaded correctly. That is, you should be sure to check that every single file that you wish to submit has been uploaded correctly. Often times, although not always, you will see a message "Connection Failed" when there is an error in transferring your files.
3. It is your responsibility to keep a personal back-up of every file that you submit electronically until you have received a grade for the assignment. Please make sure to keep a copy of your work, either on your own computer (or some other storage medium), or in your private directory (or, to play it safe, both).

Task 0: Meet the Instructors

Last week you met one of the instructors (Stella or Brian or Lyn) during her/his office hours. This week, you must meet a different one of us! Go to the a different instructor's office hours and secure a sticker (you cannot see the same person you saw last week!). If you cannot make office hours, you must schedule an appointment. Place the sticker on the problem set cover page. Now you have met at least two of us!

You cannot get credit for this assignment without a sticker, and we will NOT give you a sticker in class or lab.

Task 1: Java Execution Model

In this task, you will use the Java Execution Model to draw an execution diagram that summarizes the execution of a simple Buggle program. It is important to become familiar with the conventions for drawing execution diagrams, since they are an important tool for explaining the behavior of Java programs: Drawing execution diagrams will help you understand the meaning of method invocation, parameter passing, local variable declarations, and the this variable. You will be expected to draw an execution diagram on Exam 1.

Your JEM Assignment

Below are the declarations for two classes: a SwapWorld class that is a subclass of BuggleWorld and a SwapBuggle class that is a subclass of Buggle.

public class SwapWorld extends BuggleWorld {

    public void run () {
        SwapBuggle bg1 = new SwapBuggle();
        SwapBuggle bg2 = new SwapBuggle();
        SwapBuggle bg3 = new SwapBuggle();
        Location lcn1 = new Location(6,3);
        Location lcn2 = new Location(4,5);
        bg1.setPosition(lcn1);
        bg2.setPosition(lcn2);
        bg3.setPosition(new Location(lcn1.x - lcn2.x, lcn1.y + lcn2.y));
        bg2.setColor(Color.blue);
        bg1.setColor(Color.green);
        bg2.left();
        bg3.right();
        bg2.swap(bg3);
        bg3.swap(bg1);
    }
}

class SwapBuggle extends Buggle {

    public void swap (Buggle bg1) {
        Location lcn1 = this.getPosition();
        Location lcn2 = bg1.getPosition();
        Color c1 = this.getColor();
        Color c2 = bg1.getColor();
        this.setPosition(lcn2);
        bg1.setPosition(lcn1);
        this.setColor(c2);
        bg1.setColor(c1);
    }
}

Suppose that the run() method is invoked for an instance of SwapWorld. Your assignment is to draw an Execution Diagram for this method.

Be careful. This code is specifically designed to be tricky in a number of places. Be sure to pay attention to the following:

• Rigorously apply the evaluation rules for assignments, declarations, and instance method invocations.
• You should draw only a single diagram that summarizes the final result of completely executing the above method. Although in practice execution frames are removed and reclaimed when their last statement is done executing, you should not remove any execution frames from your diagram once you have drawn them.
• Your Execution Land should show all non-black-box execution frames created during the execution. There should be exactly three such frames: one for the invocation of run() and one for each of the two invocations of swap(). Each execution frame should have two parts: (1) a variables section and (2) a statement section. Each variable section should include: (1) a this variable; (2) any parameters declared by the invoked method; and (3) any local variables declared within the body of the invoked method.
• Your Object Land should contain: an instance of the SwapWorld class, three instances of the SwapBuggle class, and exactly six instances of the Location class (three from the three calls to new swapBuggle() and three from the three explicit calls to new Location()). . Label each of your objects in Object Land with a unique reference label (e.g., B1, B2, B3 for the buggles; L1, L2 for the locations, etc). It is a bad idea to use reference labels which are the same as any variable names in your code. Use these labels in place of pointers. Your diagram should show the state of each object after the completion of the run() method.
• Draw your diagram using pencil and paper. Pens make errors difficult to fix.
• Please try to make your diagram as neat as possible.

Task 2: Buggle Word Writing using Methods

Your assignment:

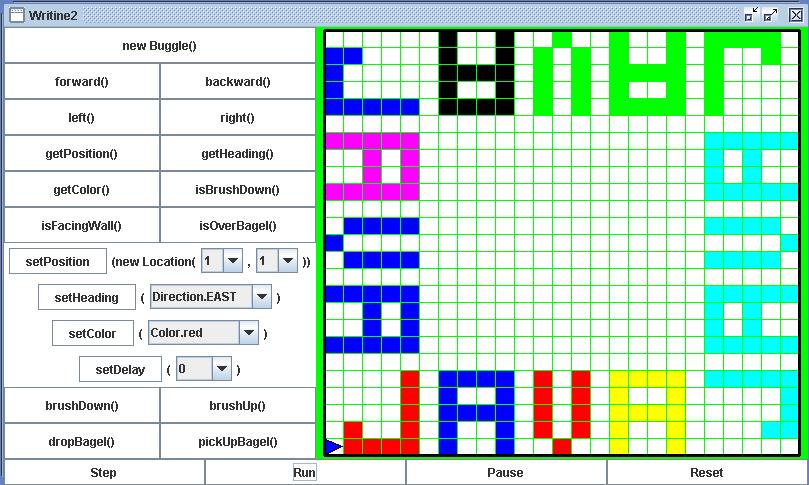

Using methods, create the above picture. The file Writing2.java contains a BuggleWorld subclass named Writing2 that creates a 25x25 grid and has the skeleton of a run() method that draws the picture. This file also contains a Buggle subclass named LetterBuggle for letter-drawing buggles. The run() method of the Writing2 class creates a new LetterBuggle named ellie whose job is to draw the above picture using methods from the LetterBuggle class. Skeletons of two such methods, writeName() and writeJ(), have been provided for you.

---

class Writing2 extends BuggleWorld {


    // write the word "JAVA" around the perimeter of the grid
    public void run () {

        // Create LetterBuggle ellie, who will perform all writing.
        LetterBuggle ellie = new LetterBuggle();

	// Write "JAVA" at the bottom of the picture
        ellie.writeName(Color.red, Color.blue, Color.yellow);

        // Flesh out statements that write the other three occurrences
        // of "JAVA" and return ellie to her initial state.

    }

    // Some other methods of the Writing2 class not shown here.

}


class LetterBuggle extends Buggle {

    // Write the word "JAVA", in the appropriately colored letters, by invoking
    // methods with appropriate color parameters for writing the individual letters.
    // Note that the J and the V are always the same color, and each A can be
    // a different color from the color of the J and V.
    public void writeName (Color c1, Color c2, Color c3) {

        // Add code here to position this buggle correctly to start writing.

        this.writeJ(c1);  // write the "J" in color c1

        // Add statements here to write the "A V A" in the correct colors.

    }

    // Write the letter "J" in color jcolor and position buggle to write the next letter.
    public void writeJ (Color jcolor) {

        // Flesh out the statements in the body of this method.

    }

    // Below, define methods for writing the letters "A" and "V",
    // as well as any other methods you find helpful.

}

---

• Flesh out the body of the writeJ() method so that it draws the letter "J". Assume that when you start to write a letter (other than "V"), the buggle is in the lower left square of a 4x5 grid, facing the direction you are writing in. At the end of the method, make sure that the buggle is placed in the correct position and direction to start the next letter (at the lower left square of the next 4x5 grid, separated by one space from the previous letter, facing the direction of writing).
• Note that the writeJ(Color jcolor) method takes a Color parameter jcolor. Use this parameter inside the body of writeJ() to set the color of the buggle appropriately.
• Define similar methods (each also with a single Color parameter) to write an "A" and a "V". Note that "V" occupies a 3x5 grid instead of the 4x5 grid occupied by each of the other letters.
• Add code to the writeName() method so that it draws the word "JAVA" by invoking the methods that write the individual letters and by using its three color parameters correctly.
• Add code to the run() method so that it draws the word "JAVA" 4 times around the perimeter of the grid, by invoking the writeName() method repeatedly. You will need to make sure that you invoke writeName() with the correct 3 color parameters in the right order to match the given picture (above). You will need to come up with a way to turn the buggle at each corner of the grid. At the end of the run() method, ellie must have the same position and heading as when she was created.

Task 3: The Buggle Bagel Ruggle Company

The buggles are great designers, but, unfortunately, they don't know much about manufacturing. It takes so long to hand-drop the bagels individually that it's impossible to make any money. Luckily for them, there is a way to automate the production of the rugs. As it turns out, the design shown above can be produced using just 4 different 3x3 grids of bagel/color patterns:

pattern1(Color.black, Color.yellow)

pattern2(Color.black, Color.yellow)

pattern3(Color.black, Color.yellow)

pattern4(Color.black, Color.yellow)

Each of these 4 patterns is parameterized by two colors that allow different colors to be used in different situations.

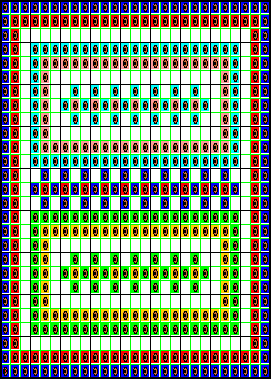

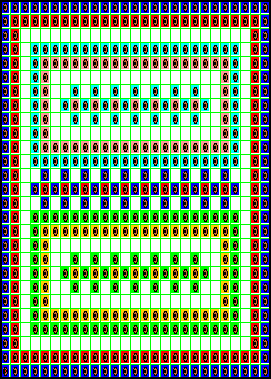

The rug itself is created by placing these patterns side by side to tile the entire rug. The rug, divided into 3x3 grids (outlined in black lines), is shown below:

Your task is to write code that draws the rug pattern shown above. This rug pattern is composed out of many repeated subpatterns. This means that there are many opportunities for using methods to simplify the drawing of the rug pattern. Your goal is to describe as many subpatterns as you can using methods to avoid writing statements for the same subpattern twice.

The code for this problem is contained in the RugWorld folder. You will be editing the file RugWorld.java. This file contains the complete definition of a BuggleWorld subclass named RugWorld (which you should not change) and the skeleton of a Buggle subclass named RugBuggle that you must flesh out. The run() method of the RugWorld class creates a single RugBuggle named weaver that draws the entire rug via the makeRug() method in the RugBuggle class:

---

  public void run() {
    RugBuggle weaver = new RugBuggle();
    weaver.brushUp();
    weaver.makeRug();
  }

---

Note that weaver's brush is up when it starts drawing the rug.

You must observe the following guidelines to complete this task:

• You should not modify the RugWorld class.
• Your task is to edit the RugBuggle class by (1) fleshing out the provided skeleton for the makeRug() method; (2) defining all the methods described below; and (3) defining any additional methods you think are helpful.
• You may not, and do not need to, use the setPosition() or setHeading() methods. You can use any of the other Buggle methods.
• Your makeRug() method must draw the colors and bagels exactly as shown in the above rug picture.
• When the makeRug() method is invoked on a buggle, its final position and heading must be the same as its initial position and heading.
• Each 3x3 grid in the rug must be generated by using one of the four 3x3 patterns shown above.
• In each 3x3 pattern, the buggle must start in the bottom left corner facing rightward. The buggle must finish in a position to start the next 3x3 pattern to the right. For example:



Before pattern3(Color.blue, Color.red);

After pattern3(Color.blue, Color.red);




• You must name the methods that generate each of the four patterns above pattern1(), pattern2(), pattern3(), and pattern4(), respectively. Each pattern should take two Color parameters. For example, the skeleton for the pattern1() method should look like this:

public void pattern1 (Color c1, Color c2) {
  // Write statements to draw pattern1 here.
}

This skeleton happens to use the parameter names c1 and c2, but you can use whatever parameter names you like.

• You must also define the following methods:

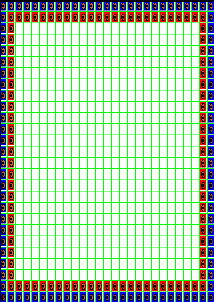

• outerRing(): this method draws the outer ring. It should have two Color parameters. The first color parameter represents the outer color of the border (blue in the rug you are drawing) and the second color parameter represents the inner color of the border (red in the rug you are drawing). A snapshot of the rug after invoking outerRing(Color.blue, Color.red) is shown below:




• innerPattern(): this method draws the inner pattern shown below that is repeated twice in the rug:



This method takes two Color parameters that determine the colors used in the pattern. For example, the above picture was created by the invocation innerPattern(Color.black, Color.yellow). Note that the actual rug uses the colors cyan and pink in one instantiation of the pattern and green and orange in the other instantiation of the pattern.



• innerRing(): this method draws the border of the inner pattern. This method should also have two Color parameters.
For example, innerRing(Color.black, Color.yellow) should draw the following pattern:





• innerRow(): this method draws the pattern in the center of the inner pattern. This method should have two Color parameters. For example, innerRow(Color.black, Color.yellow) should draw the following pattern:






• centerRow(): this method draws the pattern in the center of the rug. This method should also have two Color parameters.


Like makeRug(), the five methods above must meet the invariant that the buggle must start and finish in the same cell, facing the same direction. You should assume that the buggle starts in the bottom left corner of each pattern (as drawn above) facing rightward and should finish that way.

• The Buggle method setCellColor(Color c) can be used to paint the cell under the buggle a certain color without having to move the buggle. For example,

sara.setCellColor(Color.gray);
will paint the cell under sara gray. sara's brush state is not changed by the invocation of the setCellColor() method.
• weaver's brush is initially up before making the rug.
• You can temporarily modify the run() method to test out small parts of your code. Comment out the invocation of makeRug() and replace it by the code you want to test. Remember that you can comment out a line of code by adding // (two slashes) before that line of code.
• The row patterns are created by alternating patterns 3 and 4 like so (pattern3–pattern4–pattern3):




• You should feel free to add as many more methods as you see fit. There are many more opportunities for creating methods in this problem. In particular, the four 3x3 patterns share many common subpatterns that can be factored out with methods.

---

Non-Graded, Non-Credit Challenge Problem: HuggleWorld

Up for a challenge? Here's a golden opportunity to put your buggle skills to the test. Design greetings cards and win a bag of bagels. Click here for more details.
