Python functions

Here is our plan for today:

functions that return values and print results
functions that print an assortment of owls
functions to draw donuts
functions to draw angry birds
functions to create tesselation patterns

Files and Folders

We missed last week's lab (snow day), so let's recap how we get set up for lab (we'll follow these same steps for almost every lab).

First, connect to the cs server cs.wellesley.edu using Fetch on a Mac (or WinSCP on a PC) and download a copy of the lab2_programs folder.
Change the folder name to contain your name.

OLD NEW

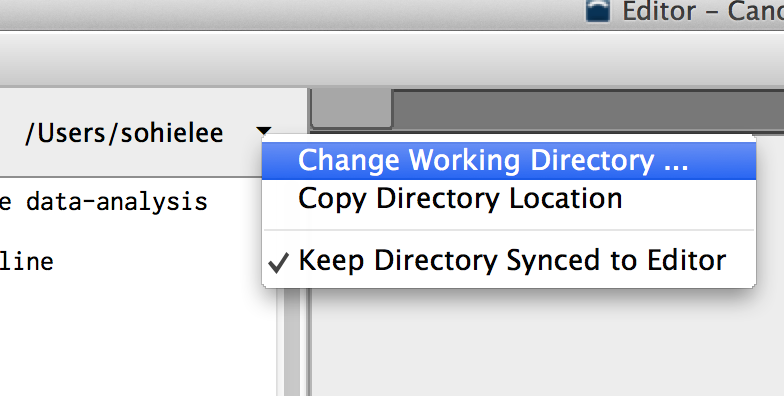

After opening Canopy, set your working directory to be your (renamed) lab2_programs folder and save all your code there.
There is a setting that you need to change (this is a one-time thing).
Canopy > Preferences > Python tab. In the drop down menu for PyLab backend, select Inline(SVG) (see image below)

Now you are ready to code in Python!


OLD	NEW

Task 0. Simulate rolling a die

Create a new file called die.py. Inside this file, write a function called roll that simulates rolling a six-sided die (that is, it returns an integer between 1 and 6, inclusive). You'll need to use python's random library.
roll()==> 2
roll()==> 5
roll()==> 6
roll()==> 1

Task 1. Currency conversion

Task 1a

Create a new file called converter.py. Write a function called convertEurosToUSD that takes an amount of Euros and converts it into US dollars (1 Euro = 1.15 USD, as of today's lab). Invoking your function will produce output like this:

convertEurosToUSD(19)==> 19 Euros = $21.85 US Dollars
convertEurosToUSD(100) ==> 100 Euros = $115.0 US Dollars
convertEurosToUSD(550) ==>550 Euros = $632.5 US Dollars

Note: although it did not occur with the above examples, sometimes you generate a dollar amount that extends beyond two decimal places (e.g. $10.232444). To clean this up, you can use the built-in python function round to display only 2 decimal places like this: round(25.65532,2) ==> 25.66. In case you're curious, here's a table of available built-in Python functions.

Task 1b

Write another function called convertUSDToWon that takes an amount of USD and converts it into Korean Won (KRW) (1 USD = 1092.20 KRW). Invoking your function will produce output like this:

convertUSDtoWon(20) ==> $20USD = 21844.0 KRW
convertUSDtoWon(75.39) ==> $75.39USD = 82340.958 KRW
Now you can use your functions to convert from Euros to KRW, for example 85 Euros is 106762.55 KRW.

Task 2. Happy Owls

This goal of this task is to give you more practice with functions (and to have a little bit of fun). Below are some strings that, if printed, produce an owl.

         '          '   # line A
         '     {o,o}'   # line B
         '     /)_) '   # line C
         '      " " '   # line D
         '          '   # line E

Complete the following steps. One rule that you must follow: in your entire drawOwls.py file, you may use each of the lines of code above exactly once. In other words, you may have exactly one line A, one line B, one line C, etc.

Create a new file called drawOwls.py
Write a function called owl() that will print an owl using the statements above.

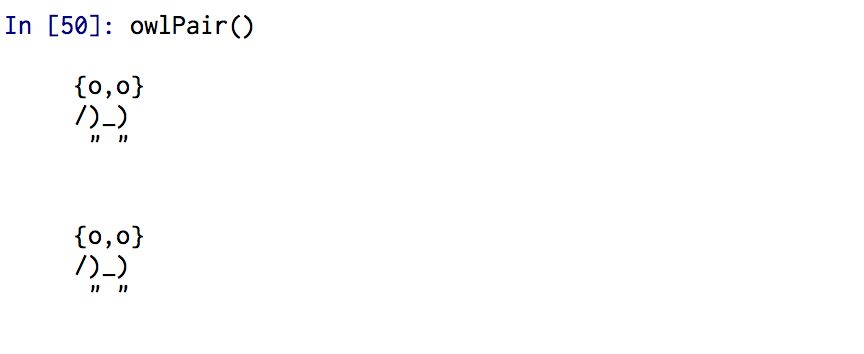

Write a second function called owlPair() that draws two owls in a column like this:

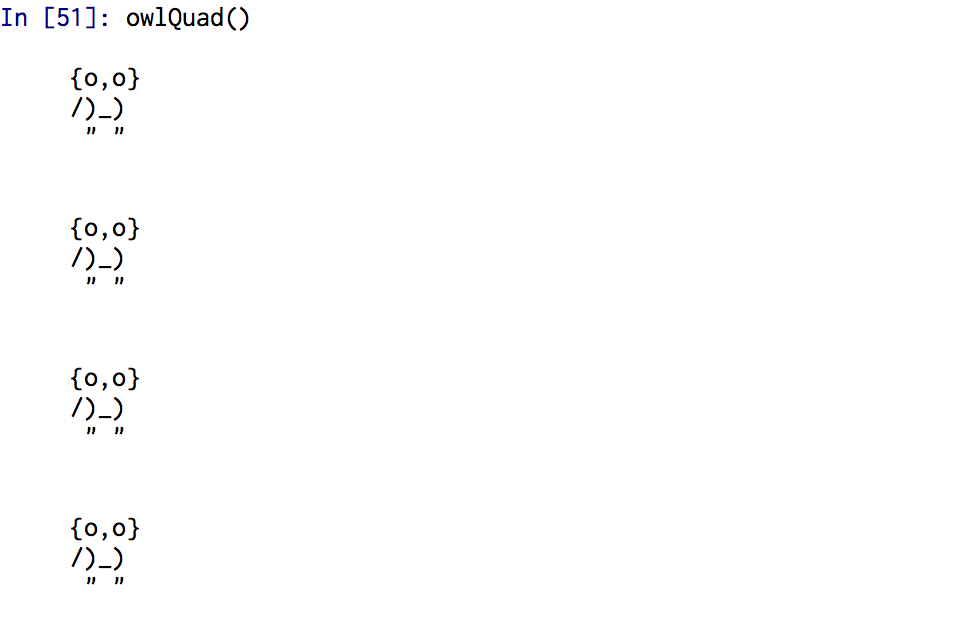

Write a third function called owlQuad() that draws four owls in a column like this:

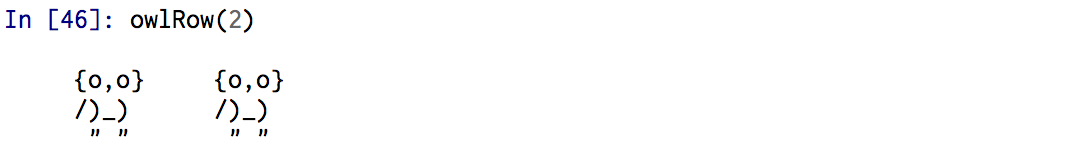

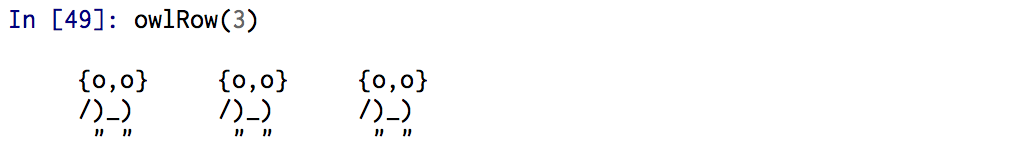

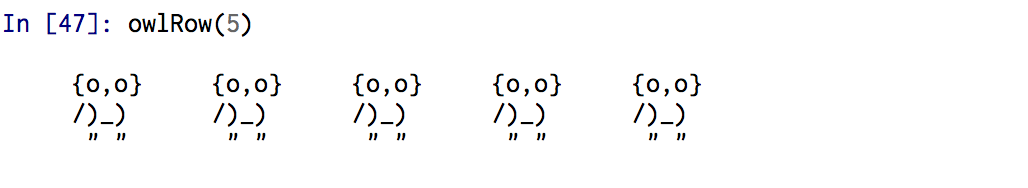

Write a fourth function called owlRow(num) that draws the specified number of owls in a row like this:

Task 3. Donuts

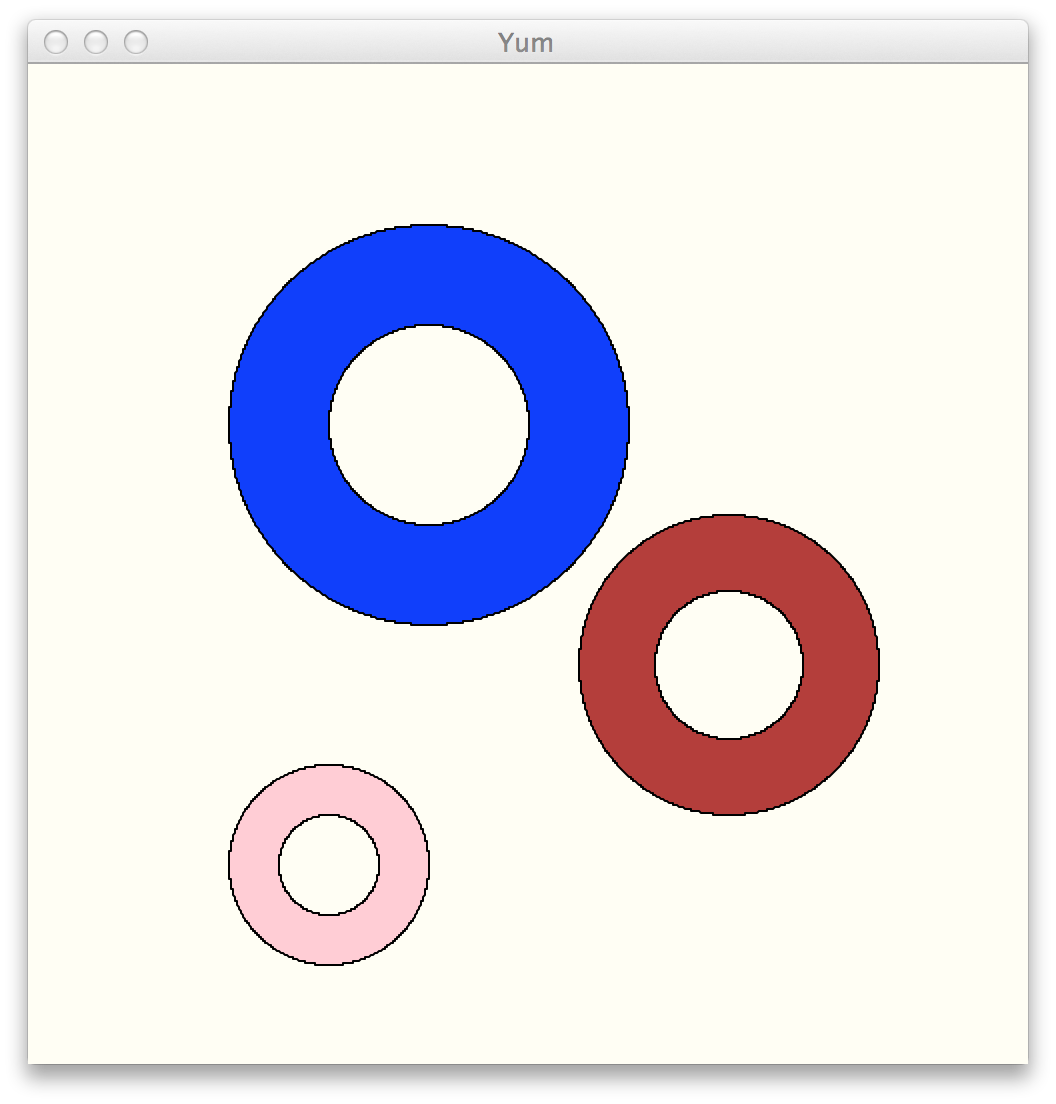

Create a new file called donut.py. In this file, you'll write a function called donut that will create a cs1graphics donut. The picture below shows three invocations of the donut function on a 500x500 canvas.

The three invocations are as follows (after creating a 500x500 ivory canvas called plate):

blueberry_donut = donut('blue',100,200,180,'ivory') plate.add(blueberry_donut) chocolate_donut = donut('brown',75, 350,300,'ivory') plate.add(chocolate_donut) strawberry_donut = donut('pink',50,150,400,'ivory') plate.add(strawberry_donut)

Here are details about how to write this function.

The donut function has five parameters, we'll call them color, radius, x, y and backgroundcolor. Color and radius specifies the color and outer radius of the donut, respectively. x and y give the position of the donut on the canvas, and backgroundcolor is the color of the donut hole (so it matches the background color of the canvas).
To make a donut, the outer circle is drawn of size radius, and then an inner circle (filled with the given backgroundcolor parameter) is drawn of size radius*0.5.
It's best to create a single Layer(), and add both the inner and outer circles to your layer to make the donut. Your donut function will return the layer that contains the donut.
Note: when creating graphics using cs1graphics, it is best to leave the center of the various components at the default (0,0). Then, after your graphic is fully created, move it to the desired location on the canvas.

Task 4. Angry birds

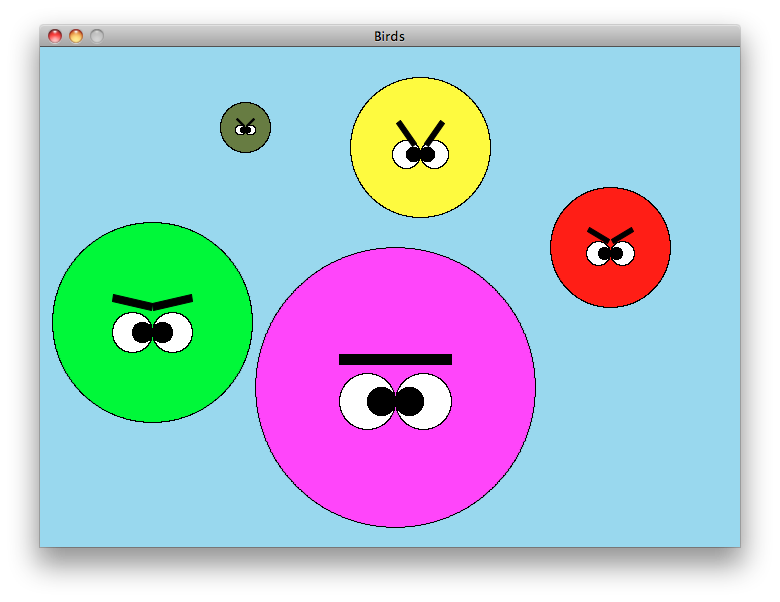

Create a new file called angryBirds.py. You'll write a function called bird that creates a single angry bird (using the cs1graphics package). The picture below shows five invocations of the bird function on a 700x500 canvas.

The five invocations are as follows (after creating a 700x500 canvas called sky):

sky.add(bird('red',60,0.5,570,200)) sky.add(bird('yellow',70,0.9,380,100)) sky.add(bird('green',100,0.2,112,275)) sky.add(bird('magenta',140,0.0,355,340)) sky.add(bird('darkolivegreen',25,0.75,205,80))
