CS111 Problem Set 7

Reading

Study the code in the file StringListOps.java in the ps07_programs/Unjumbler folder.

Study the code in the file LabOps.java in the ps07_programs/Unjumbler folder.

Notes on invoking instance methods vs. class methods.

About this Problem Set

The purpose of this problem set is to give you experience with strings, lists, and recursion.

This problem set will be graded using this grade sheet.

Working In Pairs

As always you are required to work in pairs on this entire problem set and you may not work with a partner more than twice during the semester. Use this shared Google Doc to find a pair programming partner and record who your pair partner is.

All work by a team must be a true collaboration in which members actively work together on all parts of the assignment. It is not acceptable for team members to split up the problems and work on them independently. All programming should be done with both team members working at the same computer console. The only work that you may do alone is debugging code that you have written together and talking with the instructors and drop-in tutors.

How to turn in this Problem Set

Your team will submit a single softcopy and hardcopy of the problem set and the same grade will be given to both team members. Write both team members' names on the cover sheet. Include both names in comments in all files. List only the username of the person whose directory we should look in to grade the softcopy. However, the non-submitting partner should also complete and return the signed cover page.

For general guidelines on problem set submission, including how to submit a softcopy and how to check if you softcopy submission was successful, click here. Please make sure to keep a copy of your work, either on your own computer, or in your private directory (or, to play it safe, both).

Hardcopy Submission

Your hardcopy packet should consist of:

The cover page;
Your modified Unjumbler.java file.

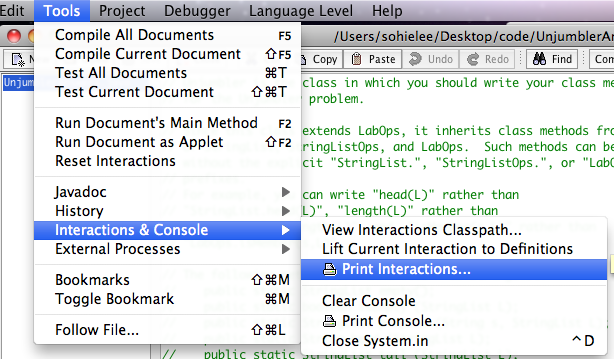

A transcript of the execution of java Unjumbler. This should display test cases illustrating that all your methods from this assignment work correctly. To create a transcript in DrJava, run your program, which should display test cases for all of your methods in the interaction pane. You can then print the contents of DrJava's interaction pane by selecting Tools > Interactions & Console > Print Interactions (see image below). Attach this transcript to your hardcopy.

Staple these together, and submit them by the start of class on the due date given above. Only one member of a pair programming team should submit this hardcopy.

Softcopy Submission

Save your final version of Unjumbler.java and submit your entire ps07_programs folder (not just the files you changed) to your drop folder on the cs111 server. Only one member of a pair programming team should submit this folder.

Word Unjumbler

Overview

Word Jumble is a popular game that appears in many newspapers and online.

The game involves “unjumbling” English words whose letters have been reordered. For instance, the jumbled word ytikt can be unjumbled to kitty. The game can be challenging; even relatively short jumbles can be tricky to unjumble. For instance, here are the words that appeared in an online version of the game; can you unjumble them?:

yandd, hubys, stapol, ungole

In this problem, you will create a Java program that acts as an "unjumbling assistant". Given a string, your program will first generate all possible reorderings of the letters in the string. Such reorderings are called permutations. For example, there are six reorderings of the letters in the string tra:

[tra,rta,rat,tar,atr,art]

In general, a string with n distinct letters has n! (pronounced "n factorial") permutations. For instance, a 4-letter string has 4! = 24 permutations, a 5-letter string has 5! = 120 permutations, a 6-letter string has 6! = 720 permutations, and so on.

Next, the assistant will determine which of the permutations is an English word by looking them up in a dictionary. You do not have to worry about how to construct such a dictionary; this has been done for you. Notes on how to use the dictionary as a "black box" can be found later in this problem description. In the case of "tra", filtering out the English words leaves:

[rat,tar,art]

When the string you are unjumbling contains duplicate letters, a simple permutations generator will yield some duplicate permutations. For instance, the permutations of "dda" will generate the 3! = 6 permutations:

[dda,dda,dad,dad,add,add]

Filtering out the English words yields:

[dad,dad,add,add]

In such cases, the unjumbling assistant should also filter out duplicates to yield the final list:

[dad,add]

To get a feel for what the unjumbling assistant does, you should experiment with the UnjumblerAnswers.class file in the Unjumbler folder, which contains working methods for unjumbling. For this assignment, we have provided this file as an example of how your solution should execute. For example, if you want to see how your program should behave, you can run the unjumble method from the UnjumblerAnswers.class by entering the following in the Dr. Java Interaction pane:

UnjumblerAnswers.unjumble(string-to-unjumble)

where string-to-unjumble is a string you wish to unjumble. For example:

> UnjumblerAnswers.unjumble("argle")
[glare,large,regal,lager]

You can use this application to help you solve real Word Jumble puzzles!

Important Note: With its default settings, DrJava is only able to unjumble words of at most 6 characters. Attempts to unjumble words longer than 6 characters will encounter a StackOverflowError, indicating that there is a chain of execution frames that is too long for the Java Virtual Machine to handle. Longer words can be handled by modifying the default stack size used by DrJava for program execution. This can be done via the following steps:

In the DrJava window, select Edit>Preferences to display the Preferences window.
In the Preferences window, select the Miscellaneous category and the JVMs subcategory.
In the input line labeled JVM Args for Interactions JVM, type -Xss10000k (no spaces). This tells the Java Virtual Machine (JVM) to use a stack with size 10000 kilobytes (about 10 megabytes), which is sufficient for unjumbling 8-character words.
At the bottom of the Preferences window, press the OK button.
A pop-up window will appear warning you that "Specifying Interactions JVM Args is an advanced option ..." and will ask you if you're sure you want to do this. Press the Yes button.
In the DrJava window, select Tools>Reset Interactions to make the change take effect.

Your Task

Your task is to create your own unjumbler program, mostly from scratch. To do this, you need to write definitions for the nine class methods specified below.

Here are some things you need to know:

Write all of your definitions in the Unjumbler class in the file Unjumbler.java in the Unjumbler folder. Carefully read the comments at the top of the Unjumbler.java file; these tell you which class methods you can use in the file without an explicit class name as a prefix.
You are not provided with test cases for your methods. You are required to write your own testing code for this assignment. You should test each of your methods by adding appropriate testing code to the main() method of the Unjumbler class, just as you did in Lab 8. Recall that the fromString() class method for the StringList class is a very convenient way to generate a string list. For instance fromString("[I,am,Sam]") yields a three element list containing the strings "I", "am", and "Sam".
In many cases below, you will need a working version of one or more of the earlier methods to write a later method. In order to remove the dependency between the different methods, we have provided you with a class named UnjumblerAnswers that contains working versions of each of the nine methods listed below. We have also provided stubs for the methods that invoke the corresponding method from the UnjumblerAnswers class. This allows you to work on your methods in any order, while still being able to test each method along the way. You must replace the bodies of the seven methods with your own code. (For this to work, your Unjumbler folder must have the file UnjumblerAnswers.class. If you have accidentally deleted this file, you will need to retrieve it again from the ps07_programs download folder — you do not have the .java file to generate it.)

public static void main (String[] args)
Displays the results of all the test cases that you will write for the other eight methods on this assignment. You should extend the definition of this method whenever you begin work on one of the other methods. You should test at least all of the examples shown for each method in the method specifications below, but may want to add additional test cases as well.
For example, one test case for the remove method might display something like the following:
```
remove("I", [I,know,that,I,said,that,I,did]) = [know,that,said,that,did]
```
Note: Study the main method in LabOps.java to see examples of such test cases.
public static StringList remove (String s, StringList L)
Returns a new list in which all occurrences of s in L have been removed. The other strings in the list should have the same relative order in the resulting list as in the given list.
Examples:
```
> Unjumbler.remove("I", StringList.fromString("[I,know,that,I,said,that,I,did]"))
[know,that,said,that,did]

> Unjumbler.remove("that", StringList.fromString("[I,know,that,I,said,that,I,did]"))
[I,know,I,said,I,did]

> Unjumbler.remove("said", StringList.fromString("[I,know,that,I,said,that,I,did]"))
[I,know,that,I,that,I,did]

> Unjumbler.remove("you", StringList.fromString("[I,know,that,I,said,that,I,did]"))
[I,know,that,I,said,that,I,did]
```
Note: Use the equals() instance method from the String class to compare two strings. For instance, "cat".equals("cat") returns true but "cat".equals("dog") returns false. You should not use == to compare two strings because it may not return what you expect. For instance, while "cat" == "dog" is guaranteed to return false, "cat" == "cat" and "cat" == ("c" + "at") are not guaranteed to return true. They may return true in some implementations and some circumstances, but you cannot rely on this behavior.

public static StringList removeDuplicates (StringList L)
Returns a list containing each string in L exactly once. The order of the elements in the returned list should be the relative order of the first occurrence of each element in L.

Examples:

> Unjumbler.removeDuplicates(StringList.fromString("[I,know,that,I,said,that,I,did]"))
[I,know,that,said,did]

> Unjumbler.removeDuplicates(StringList.fromString("[you,say,what,you,mean,and,mean,what,you,say]"))
[you,say,what,mean,and]

> Unjumbler.removeDuplicates(StringList.fromString("[lists,are,cool]"))
[lists,are,cool]

Note: The remove method from above is helpful here!

public static StringList mapConcat (String s, StringList L)
Given a list L with n strings, returns a new list with n strings in which the ith string of the resulting list is the result of concatenating s to the ith element of L.

Examples:

> Unjumbler.mapConcat("com", StringList.fromString("[puter,plain,municate,pile]"))
[computer,complain,communicate,compile]

> Unjumbler.mapConcat("I ", StringList.fromString("[came,saw,conquered]"))
[I came,I saw,I conquered]

public static StringList filterWords (StringList L)
Returns a list of all strings in L that are English words. The resulting strings should be in the same relative order as in L.
Examples:
```
> Unjumbler.filterWords(StringList.fromString("[the,dog,barked,at,the,cat]"))
[the,dog,barked,at,the,cat]

> Unjumbler.filterWords(StringList.fromString("[the,dog,barkd,ate,hte,cat]"))
[the,dog,ate,cat]

> Unjumbler.filterWords(StringList.fromString("[tra,rta,rat,tar,atr,art]"))
[rat,tar,art]
```
Note: To determine if a string is an English word, you should use the class method isWord() that is already defined for you in the Unjumbler class:
public static boolean isWord (String s)
Returns true if s is a word in the default English dictionary, and false otherwise.

The default dictionary (which can be changed within the Unjumbler class) contains 22641 English words (all lower case, no proper nouns) of up to 8 characters in length. It is not a "perfect" dictionary: there are some perfectly acceptable English words that are not in the dictionary.
You can change the default dictionary to one that contains 45425 English words without a length restriction, but this takes longer to load. For details on how to do this, see the comments near the end of Unjumbler.java.
public static StringList insertions (String s1, String s2)
Given two strings s1 and s2, where s2 has n characters, returns a list of n + 1 strings that result from inserting s1 at all possible positions within s2, from left to right.
Examples:
```
> Unjumbler.insertions("*", "split")
[*split,s*plit,sp*lit,spl*it,spli*t,split*]

> Unjumbler.insertions("a", "bcd")
[abcd,bacd,bcad,bcda]

> Unjumbler.insertions("com", "pile")
[compile,pcomile,picomle,pilcome,pilecom]

> Unjumbler.insertions("abc", "")
[abc]
```
Note: The LabOps class contains two helper methods that are useful for defining insertions:
1. public static String first (String s)
  Returns a string consisting of the first character of s. For example, LabOps.first("computer") returns the string "c".
2. public static String butFirst (String s)
  Returns a string consisting of all but the first character of s. For example, LabOps.butFirst("computer") returns the string "omputer".
Within the Unjumbler class, it is not necesssary to use the prefix LabOps. with first and butFirst.

public static StringList insertionsList (String s, StringList L)
Returns a list that contains all the strings that result from inserting s at all possible positions in all the strings of L.

Examples:

> Unjumbler.insertionsList("a", StringList.fromString("[bc,cb]"))
[abc,bac,bca,acb,cab,cba]

> Unjumbler.insertionsList("*", StringList.fromString("[I,am,Sam]"))
[*I,I*,*am,a*m,am*,*Sam,S*am,Sa*m,Sam*]

> Unjumbler.insertionsList("abc", StringList.fromString("[]"))
[]

Note: The StringListOps class contains a helper method append that is useful for defining insertionsList:

public static StringList append (StringList L1, StringList L2)
Returns a new string list containing all the elements of L1 followed by all of the elements of L2. For example,
> StringListOps.append(StringList.fromString("[I,do]"), StringList.fromString("[not,like,green,eggs]"))
[I,do,not,like,green,eggs]

> StringListOps.append(StringList.fromString("[I,do]"), StringList.fromString("[]"))
[I,do]

> StringListOps.append(StringList.fromString("[]"), StringList.fromString("[not,like,green,eggs]"))
[not,like,green,eggs]
Within the Unjumbler class, it is not necesssary to use the prefix StringListOps. with append.

public static StringList permutations (String s)
Returns a list of all permutations of the string s. A permutation of a string s is any string that is formed by reordering the letters in the string s (without duplicating or deleting any letters). For a string with n distinct characters, there are exactly n! (i.e., "n factorial") permutations. If some characters in s are repeated, there are still n! permutations, but the permutations contain duplicates. The elements in the list returned by permutations may be in any order.

Examples:

> Unjumbler.permutations("d")
[d]

> Unjumbler.permutations("cd")
[cd,dc]
// Could also return [dc,cd].
// Can you see how "c" was glued to permutations("d") to yield permutations("cd")?

> Unjumbler.permutations("bcd")
[bcd,cbd,cdb,bdc,dbc,dcb]
// In this and following answers, could return any permutation of the given answer list.
// Can you see how "b" was glued to permutations("cd") to yield permutations("bcd")?

> Unjumbler.permutations("abcd")
[abcd,bacd,bcad,bcda,
 acbd,cabd,cbad,cbda,
 acdb,cadb,cdab,cdba,
 abdc,badc,bdac,bdca,
 adbc,dabc,dbac,dbca,
 adcb,dacb,dcab,dcba]
// The above answer list was manually reformatted into rows to make it easier to read.
// Can you see how "a" was glued to permutations("bcd") to yield permutations("abcd")?
> Unjumbler.permutations("121")
[121,211,211,112,112,121]
// Could return any permutation of the above list.

>  Unjumbler.permutations("2121")
[2121,1221,1221,1212,
 2211,2211,2121,2112,
 2211,2211,2121,2112,
 2112,1212,1122,1122,
 2112,1212,1122,1122,
 2121,1221,1221,1212]
// The above answer list was manually reformatted into rows to make it easier to read.
// Can you see how "2" was glued to permutations("121") to yield permutations("2121")?

Note: There are many ways to define the permutations method, but a particularly elegant way uses the first, butFirst, and insertionsList methods from above. Be very careful in defining your base case!

public static StringList unjumble (String s)
Returns a list of all the permutations of s that are English words (as determined by the default dictionary). The order of elements in the resulting list does not matter, but each word in the resulting list should be listed only once.
Examples:
```
> Unjumbler.unjumble("tra")
[rat,tar,art]
// In this and following answers, could return any permutation of the given answer list.

> Unjumbler.unjumble("tras")
[rats,arts,star]
// the default dictionary doesn't recognize "tars" or "tsar" as words

> Unjumbler.unjumble("argle")
[glare,large,lager,regal]

> Unjumbler.unjumble("sbso")
[sobs,boss]

> Unjumbler.unjumble("xzzy")
[]
```
Note: You should only remove duplicates after performing filterWords. It turns out that performing removeDuplicates on a large lists (such as the output of permutations) can take a very long time. (To understand why this is so, take CS230!)
