CS111 Lab 7

Wednesday, October 31, 2001

Topics

Object lists, typecasting
Recursive methods for lists
A brief introduction to strings

Exercise 1

Please download folder lab7 from the download directory. It contains code for all 4 exercises that you will be working on. Within the lab7 folder there is a test folder which demonstrates how your solution should work.

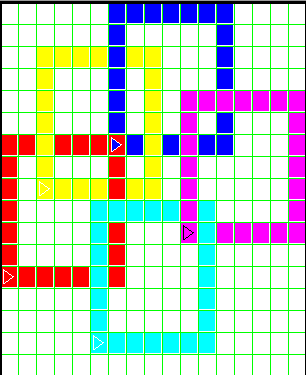

Recall the Buggle's Olympic Symbol from problem set 1. In this problem we use a list of 5 buggles to draw a version of this symbol that will draw the 5 rings simultaneously, each buggle draws one ring. The olympic symbol looks as shown below, note that it is slightly different from the one in the problem set 1:

The object list fiveBuggles contains 5 buggles whose initial positions are in the left lower corners of the rings facing east. The method run has the beginning of drawing the rings. The part below draws the bottom part of the rings and makes the buggles turn left.


   	// buggles move together to create the olimpic symbol
   	// draw the bottom side of the rings
   	fiveBuggles = AllForward(6, fiveBuggles);
   	fiveBuggles = AllLeft(fiveBuggles);

Your task is to fill in the code for the methods


  public static ObjectList AllForward(int n, ObjectList buggles) {
  	// move each of the buggles on the list n steps forward
  	// Don't forget the typecasting, otherwise you cannot invoke
  	// buggle methods on elements of the list!
  	// return the modified list

and


  public static ObjectList AllLeft(ObjectList buggles) {
  	// turn left each of the buggles on the list
  	// Don't forget the typecasting, otherwise you cannot invoke
  	// buggle methods on elements of the list!
  	// return the modified list

The first methods makes all the buggles on the list move n steps forward, the second one makes all buggles turn left. Note that both methods return the modified list, i.e. the list of buggles with the changed position or the changed direction.

You also need to fill in the rest of the code in run to finish drawing the rings.

Exercise 2

In this problem you will use a list of buggles which cooperate in harvesting bagels. Each of them harvests 4 cells of the field (a 2-by-2 square), and all together they can finish their job very quickly! These buggles belong to a class CoopHarvester and have a method harvestSquare which makes a buggle harvest a 2-by-2 square to its left and above. The method returns the number of bagels harvested on the square. This class has been already written, you do not need to change anything in it.

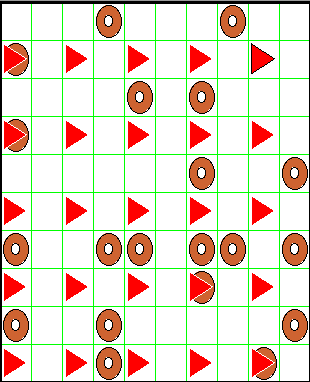

The program starts by generating a random field of bagels according to the height, width, and number of bagels entered in the small window near the applet (just as in HarvestWorld). In addition, the program creates an ObjectList of CoopHarvesters, one per each 2-by-2 square of the field ( (height*width)/2 total). The program works only when both height and width are even numbers. The pictures below show the initial and the final configuration of the program.

In the end the number of bagels harvested is displayed in the small window:

Your task is to fill in the code for the following method:


public int harvestAll(ObjectList harvesters) {
 	// The method uses a list of CoopHarvesters positioned each in the starting
 	// position of a 2-by-2 square to harvest bagels on the entire field
 	// by invoking the method harvestSquare for each harvester on the list
 	// The method returns the total number of harvested bagels obtained
 	// as the sum of values returned by harvestSquare invocations

Exercise 3

One of the most favorite games of buggles is Freeze Tag. In this game a buggle runs around until he gets over a bagel. Then the buggle is "tagged": he changes the color to blue and does not move. We will simulate the game and see how many buggles stay in the game (i.e. are not tagged") after a specified number of rounds.

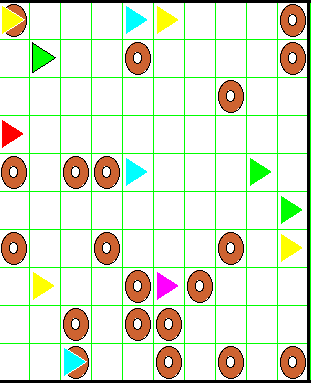

To run the program, enter the size of the grid and the number of bagels and buggles in the small window. The program then generates the grid with a random configuration of bagels and creates a list of buggles with random positions and colors (except for blue). An example of the intial configuration is shown on the left picture below.

The game proceeds as follows:

all buggles which are over a bagel turn blue and don't move
all buggles which are not over a bagel make a random turn (using the method randomTurn() and, if there is no wall right in front of the buggle, move one step forward.

After several rounds of the game the grid might look like the picture below on the right.

After the specified number of rounds the number of buggles still in the game is displayed in the little window:

Your task is to fill in code for the following methods:


public int playTag(ObjectList players, int roundsLeft) {
	// the method simulates a specified number of rounds of FreezeTag
	// and returns the number of buggles still in the game
	// it uses method oneRound to play a round of the game,
	// and a method howManyNotBlue to count the number of buggles
	// still in the game


public ObjectList oneRound(ObjectList players)  {
	// the method simulates one round of FreezeTag game
	// For each buggle on the list does the following:
	// 1. If the buggle is over a bagel, its color is set to blue
	// 2. otherwise the buggle performs a random turn, and, if it is not
	//    facing a wall, a forward move
	// The modified list of buggles is returned


public int howManyNotBlue(ObjectList players) {
	// the method returns the number of buggles on the list which have color other than blue

Exercise 4

This problem deals with ObjectLists which hold strings. The program in the file RandomSentenceTest.java has three ObjectLists: nouns which contains three nouns, adjectives which contains three adjectives, and actions, which contains three actions, s.a. "is walking". The program generates random sentences by choosing an adjective, a noun, and an action at random. An example of the program's output looks like this:

The program illustrates how to use the static method pickRandom of the class ObjectListOps to choose one element of the list at random:


	String word = (String) ObjectListOps.pickRandom(nouns);
	println("A random noun is: " + word);

The first line in the output is a random string chosen from the list of nouns.

Your task is to fill in the code for the method


public ObjectList generateSentence(ObjectList L1, ObjectList L2, ObjectList L3) {
		// The method returns a list made of one random word of L1
		// followed by a random word of L2, followed by a random word of L3

The method is called 10 times in the program, so 10 random sentences are generated.
