About this Problem Set

The purpose of this problem set is to give you experience with tail recursion, while loops and for loops. There are three problems in this problem set.

How to turn in this Problem Set

Submit the folder ps8_programs to your drop folder on the cs111 server. Before submitting your work, make sure that all the files have been saved and the projects compile and run as they should. After submitting your work, make sure to doublecheck that all the files have been uploaded correctly. If you need directions on how to submit your work or how to check whether the submission was successful, please click here. Please make sure to keep a copy of your work, either on a zip disk, or in your private directory (or, to play it safe, both).

Problem 1: List Merging

The following merge() method described in lecture takes two sorted lists of integers named L1 and L2 and merges them into a single sorted list.
A tail-recursive startegy is used. The .java file has been set up so that you do not have to write IntListOps.head(L), etc.,
but instead can simply write head(L), for each of the IntList functions.

        public static IntList merge(IntList L1, IntList L2) {
                return mergeTail(L1, L2, empty());
        }

        public static IntList mergeTail(IntList L1, IntList L2, IntList build) {
                if (isEmpty(L1)) {
                    return append(build, L2);
                }
                else if (isEmpty(L2)) {
                    return append(build, L1);
                }
                else if (head(L1) <= head(L2)) {
                    return mergeTail( tail(L1), L2, postpend(build, head(L1)) );
                }
                else {
                    return mergeTail( L1, tail(L2), postpend(build, head(L2)) );
                }
        }

The mergeTail() method is a tail recursive method that specifies an iteration in three state variables named L1, L2, and build. Any iteration can be characterized by how the values of the state variables change over time. To understand the method better, fill in the iteration table below. The table has three columns, one for each state variable of the iteration described by mergeTail(). Each row represents the values of the parameters to a particular invocation of mergeTail().

Suppose that the list A has the printed representation [1, 3, 5] and the list B corresponds to [2, 6, 8, 10]. Fill in the following table to show the parameters passed to successive calls to mergeTail() in the computation that begins with the invocation merge(A, B). There are more rows shown here than you need, so you should draw only as many rows as you need to in your table:

L1 L2 build

[1, 3, 5] [ 2, 6, 8, 10] [ ]

You don't need to submit the iteration table.

For each part of this problem, you need to flesh out the code that is found in the file ps8IntListOps.java, in the ps8IntLists folder. The file that you download from Nike simply references the class file ps8IntListAnswers in the program stubs for these methods. (The class file, but not the source (i.e. the .java) file for the answers is included in the ps8IntLists folder). Before you start programming, run the the project ps8IntList.mcp. Study the behavior of each method so that you know what the desired output is. Then replace the line that invokes the method from the answers class with your own code.

Part a. It is possible to express any iteration as a while loop. Flesh out the following code skeleton of a mergeWhile() method that behaves just like the above merge() method except that it uses a while loop rather than tail recursion to express the iteration of mergeTail(). Your mergeWhile() method should not call any auxiliary methods of your own, only the necessary IntList methods such as prepend(), postpend(), and append().

        public static IntList mergeWhile (IntList L1, IntList L2) {

        }

Part b. It is possible to express any iteration as a for loop. Flesh out the following code skeleton of a mergeFor() method that behaves just like merge() except that it uses a for loop rather than tail recursion to express the iteration of mergeTail(). Your mergeFor() method should not call any auxiliary methods of your own, only the necessary IntList methods such as prepend(), postpend(), and append().

        public static IntList mergeFor (IntList L1, IntList L2) {

        }

Part c. An important use of the merge() method is in a sorting algorithm known as mergesort. Here is the idea behind mergesort:

To sort the elements of a list, split the list roughly in half into two lists that we call lowHalf and highHalf. Recursively sort each of the two halves, and then use merge() to combine the sorted half into a single sorted list.

For example, if the initial list is [5, 2, 8, 3, 6, 7, 1, 4, -8], then splitting yields:

        lowHalf = [5, 2, 8, 3]
        highHalf = [6, 7, 1, 4, -8]

If the length of the original list is not even, then lowHalf will be shorter by one than highHalf, as shown here. By wishful thinking (recursion!), sorting lowHalf will yield [2, 3, 5, 8] and sorting highHalf will yield [-8, 1, 4, 6, 7]. The result of sorting the original list is the result of merging the halves [2, 3, 5, 8] and [-8, 1, 4, 6, 7]. There are two base cases in this recursion, a list with zero elements and a list with one element. It is tempting, but unnecessary, to treat a list with length 2 as a base case.

Flesh out a method public static IntList mergeSort (IntList L) that uses this idea to sort the elements of a list. You may use standard IntList methods, including reverse(), as well as the method listPiece() defined in IntListOps.java. The invocation listPiece(L, lo, hi) returns an IntList list containing the elements of the list L that appear in positions lo through hi (inclusive) of L. It is assumed here that the positions of the elements of L are numbered 1 through n, where n is the length of L.

Homework Problem 2: Nested Frames

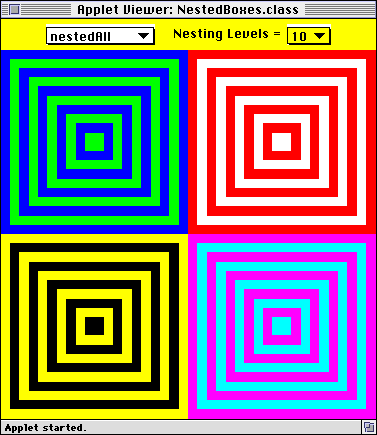

In this problem you will use iteration to draw two-colored nested frame patterns like those shown below:

Each of the four patterns consists of concentric rectangular frames that have the same thickness and alternate between two colors. In the above example, each target has 10 nested frames, each of whose thicknesses is 1/20 of the dimensions allocated to the pattern. (When the thickness is 1/(2*numberNestedFrames), the frames will evenly fill the alloted Picture space)

In Picture World, such patterns can be drawn as a sequence of concentric filled rectangles, where the rectangles are draw from the outside in. You have been provided with the following method for creating a centered rectangular picture:

public Picture centeredRect (double fraction, Color c)
Returns a rectangle filled with color c that is centered in the picture canvas in which it is drawn. The width and height of the rectangle are each the given fraction of the enclosing picture canvas's width and height. The fraction argument must be between 0 and 1.

For example, using this method, here is a recursive implementation of the nested pattern:

public Picture nestedRec(int levels, double thickness, Color c1, Color c2) {
  if (levels == 0) {
    return empty();
  } else {
    return overlay(nestedRec(levels - 1, thickness, c2, c1),
                   centeredRect(levels*thickness, c1));
  }
}

Here, levels is the number of nested frames, thickness is defined as 1/levels, and represents twice the thickness of each frame edge, c1 is the outermost color, and c2 is the color that alternates with c1. (Note that thickness = 1/levels is automatically defined in the code you are given). The recursion accumulates a final picture that consists of levels centered rectangles overlayed on top of one another. Note how each level of the recursion decrements levels by 1 and swaps c1 and c2 (so that c2 is the outermost color in the nested subpicture). This strategy is not a tail recursive one, since there is still a pending overlay operation to be performed after the recursion returns.

Before you start, it will be helpful to draw an iteration table for creating the NestedFrames picture with iteration. The table should have a column for each of the state variables in the iteration. This will include the state variables: n, thickness, c1, c2, and a Picture variable that contains the answer for the current iteration state. You may also want to add an extra column that contains the picture that will be used in combination with the current answer to generate the next answer in the next row of the iteration table. This extra column should have pictures that can be created from the other state variables and the Picture methods that are available to you (including centeredRect()). Draw out the iteration table for the following invocation:

nestedIter(4,0.25,Color.blue,Color.green);

You don't need to submit the iteration table.

Part a. You will be fleshing out the following skeletons in the file NestedFrames.java within the folder NestedFrames:

public Picture nestedIter(int n, double thickness, Color c1, Color c2) {
  // This method contains the initial call to nestedTail, which does all the work.
  return nestedTail(n, thickness, c1, c2, empty());
}

public Picture nestedTail(int n, double thickness,
                          Color c1, Color c2, Picture ans) {
  // nestedTail should be a tail recursive method that returns a Picture
  // that is the nested frames pattern.

  // Replace the following stub by a correct definition.
  return empty();
}

public Picture nestedWhile(int n, double thickness, Color c1, Color c2) {
  // Use a while loop to accumulate and return a Picture
  // that is the nested frames pattern.

  // Replace the following stub by a correct definition.
  return empty();
}

public Picture nestedFor(int n, double thickness, Color c1, Color c2) {
  // Use a for loop to accumulate and return a Picture
  // that is the nested frames pattern.

  // Replace the following stub by a correct definition.
  return empty();
}

Your task is to flesh out all three methods so that they have the same behavior as nestedRec. You can test your methods by executing the NestedFrames.html applet. This will give you a window like that pictured at the beginning of this problem. By selecting an integer in the rightmost choice box, you can change the nesting level of the patterns. Your code does not have to take care of calculating the thickness; this calculation is already performed by the testing enviroment.

The patterns are arranged as follows inside the NestedFrames Applet window:

The upper left corner is the Picture generated by nestedRec().
The upper right corner is the Picture generated by nestedIter().
The lower left corner is the Picture generated by nestedWhile().
The lower right corner is the Picture generated by nestedFor().

In your definitions, pay attention to the following notes:

The iterations are similar to the factorial and Fibonacci examples discussed in class, except that the result being accumulated is a Picture rather than a number.
Just as 1 is the identity value for multiplication and 0 is the identity value for addition, the empty picture is the identity value for the overlay operation.
Each of your iterations should decrement levels by 1. You should not decrement levels by 2!
In some of your definitions, you will find it helpful to introduce a "temporary variable" to hold a value that would otherwise be lost in a sequence of assignment statements. See the while loop version of the Fibonacci function defined in class for an example of an iteration that requires a temporary variable.
Each of your three definitions should be short (each can easily be defined in 10 lines or less). In this problem, there is no need to define any auxiliary methods.
Each of your definitions must be independent of all the others and of the NestedFramesRec method provided. That is, none of the methods may invoke any of the other methods for which you are writing the code in this problem, nor may they invoke the NestedFramesRec method.

Homework Problem 3: Turtle Steps

In this problem, you will use a turtle to draw sequences of descending steps made out of square blocks. For example:

The steps are controlled by two parameters:

n : the number of blocks in the base layer of the steps. The above steps have a base of 5 blocks.
blockSize : the side length of each block. The above steps have blocks that are 10 pixels on each side.

Below, you are asked to implement two different strategies for drawing such steps. The skeleton code that you need to flesh out can be found in the StepMaker class within the StepWorld.java file within the folder StepWorld. StepMaker is a subclass of Turtle; all lines should be drawn by the fd and bd methods of this subclass of turtle. When you have finished the two parts below, you should save the modified StepWorld.java file in the StepWorld Folder and upload it to your ps8 drop folder.

Part a: Row Decomposition

One way to decompose a set of steps is into a base row of blocks and a smaller set of steps. For instance, the sample steps from above can be decomposed into a row of five blocks and a set of steps with a base of four blocks:

In this part, you are to implement this strategy via the following two methods:

public void stepsRec (int n, int blockSize)
Use recursion to draw a set of descending steps with a base of n blocks, each of which
is a square of side blockSize, and return the turtle to its initial position and
heading. The problem should be decomposed into drawing the base row
of blocks and drawing a smaller set of descending steps above it.

public void row (int n, int blockSize)
Use recursion to draw a row consisting of n blocks, each of which is a square of side blockSize,
and return the turtle to its initial position and heading.

You may wish to define additional auxiliary methods in addition to the two methods described above.

You can test out your code for this part by (1) selecting stepRec in the parameter window; (2) choosing values for n and blockSize in the parameter window; and (3) selecting Run in the Turtle window. The turtle originally starts at a coordinate of (0,0) (in the center of the screen) with a heading of 0 degrees (facing east). In order to test that stepsRec properly returns the turtle to its initial position and heading, the testing code has the turtle turn left 225 degrees and move forward 100 steps after the call to stepsRec.

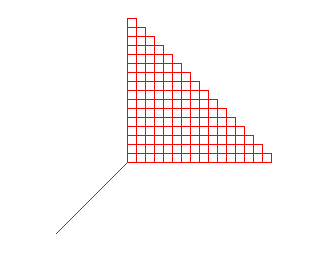

For example, the following parameter settings

should result in the following picture:

Part b. Rectangle Decomposition

An alternate strategy for drawing the steps is based on the following observation: a set of steps with a base of n blocks can be drawn as the superposition of n rectangles whose widths increase from 1*blockSize to n*blockSize and whose heights decrease from n*blockSize to 1*blockSize. For example, the 5-block base steps shown below result from superimposing the five rectangles to its right so that their lower left points coincide:

Use this idea to implement the following method:

public void stepsWhile (int n, int blockSize)
Draw a set of descending steps with a base of n blocks, each of which is a square of side blockSize, and return the turtle to its initial position and heading.

The problem should be decomposed into drawing n superimposed rectangles as described above. As suggested by the name stepsWhile, a while loop
should be used to draw the rectangles.

You may define auxiliary methods for this problem if you wish.

You can test out your code for this part as in part a, except you should select stepsWhile in the parameter window. To ensure that the turtle is returned to its initial position and heading, the testing code will draw the additional line extending from the lower left corner as mentioned in the testing notes for part a.
