CS111, Wellesley College, Fall 2001 Problem Set 2 Due: Tuesday, September 25 by 11 pm

About this Problem Set

How to turn in this Problem Set

Task 1: Buggle Name Writing using Methods

Your assignment:

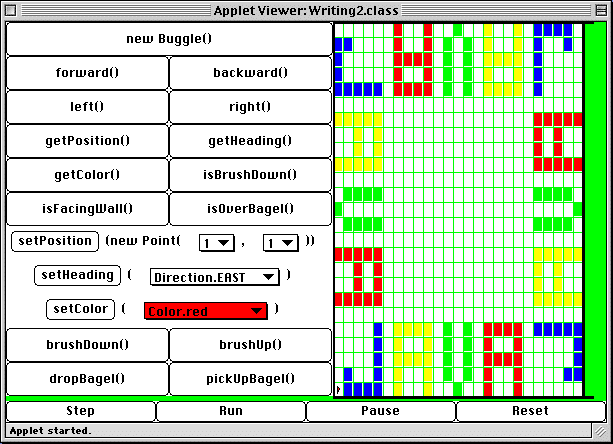

Using methods, create the above grid. The file Writing2.java contains Java code which creates a larger grid and defines a LetterBuggle, a new class of objects which extends the Buggle class. A new LetterBuggle named ellie has also been created for you, along with two LetterBuggle methods; writeName, and writeJ, as shown below:

// write the word "JAVA" around the perimeter of the grid

public void run () {
  LetterBuggle ellie = new LetterBuggle();
  ellie.writeName();

  // add your code here
  // statements which will write the word "JAVA" around the perimeter of the grid

}


class LetterBuggle extends Buggle {

  // write the word "JAVA", in the appropriately colored letters, by setting the color,
  // and then by invoking methods for writing the individual letters
  public void writeName () {


    // fill in with statements which will position this Buggle correctly to start writing


    this.setColor(Color.blue);
    this.writeJ();    // write the first "J", in blue

    // add your code here
    // statements which will write the "A V A" in the correct colors
  }


  //write the letter "J"
  public void writeJ() {

    this.left(); // face NORTH
    this.forward(); // draw hook in lower left of "J"

    // add your code here
    // the rest of the statements for writing a "J"

  }

  // add your code here
  // methods for writing the other letters in the word

}

• Add the rest of the code to the writeJ method so that it draws the letter "J". This code should be very similar to the code you used in problem set 1 for that purpose! Assume that when you start to write a letter (other than"V"), the buggle is in the lower left square of a 4x5 grid, facing the direction you are writing in. At the end of the method, make sure that the buggle is placed in the correct position and direction to start the next letter (at the lower left square of the next 4x5 grid, separated by one space from the previous letter, facing the direction of writing).
• Define similar methods to write an "A" and a "V". Note that "V" occupies a 3x5 grid instead of the 4x5 grid occupied by each of the other letters.
• Add code to the writeName method so that it draws the word "JAVA" by setting the color and then invoking the methods which write the individual letters.
• Add code to the run method so that it draws the word 4 times around the perimeter of the grid, by invoking the writeName method repeatedly. You will need to come up with a way to turn and change your heading at each corner of the grid.

1. You may not invoke the "setPosition" or "setHeading" methods.
2. You should use the methods "brushUp" and "brushDown" where appropriate.
3. Each letter except "V" should fit in a 4x5 grid, and should be separated from the next letter by one blank space.
4. The letter "V should occupy a 3x5 grid as shown.
5. Ellie must draw the letters in the appropriate colors (use "setColor" to change colors).
6. Ellie must end up in the position shown above, facing the correct direction (EAST).
7. Use methods to solve the problem.

Task 2: The Buggle Bagel Ruggle Company

Alternatively, to be on the safe side (i.e. to make sure that you are not running the code from the previous task instead of the new one), you might want to quit CodeWarrior entirely and reopen it for the new project. To do this

1. quit CodeWarrior (File -> Quit),
2. quit the Applet Runner by selecting Apple Applet Runner from the menu of active applications in the upper right corner of the screen, then choosing Quit from the File menu,
3. double-click on the RugWorld.mcp icon to open the second project

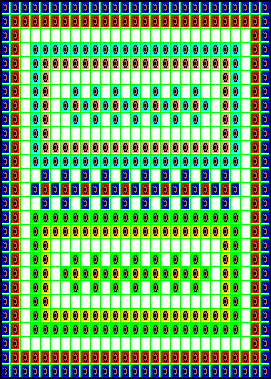

Here is an example of a rug they created:

The buggles are great designers, but, unfortunately, they don't know much about manufacturing. It takes so long to hand-drop the bagels individually that it's impossible to make any money. Luckily for them, there is a way to automate the production of the rugs. As it turns out, the design shown above can be produced using just 4 different 3x3 grids of bagel patterns:

pattern 1

pattern 2

pattern 3

pattern 4

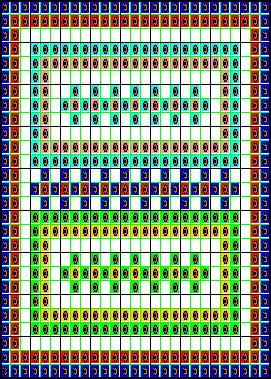

The rug itself is created by placing these patterns side by side to tile the entire rug. The rug, divided into 3x3 grids (outlined in black lines), is shown below:

The rug pattern includes a lot of repetitive patterns. This means that there are many opportunities for using methods to generate the pattern efficiently. Your task is to write the code which will create the rug pattern shown above in the most efficient manner you can think of. The code for this problem is contained in the RugWorld folder. The file RugWorld.java contains the initial set-up for creating the rug shown above. becky, bobby, bertie, benny and billy have hired a RugBuggle (another new class of objects which extends the Buggle class) named weaver to produce the rugs. You should add your code to this file, but you should not remove any existing code.

You must observe the following constraints:

• You can not modify any of the code in the run method.
• You should use a single RugBuggle for the entire rug (weaver, who has already been created in the file).
• You may not, and do not need to, use the setPosition() or setHeading() methods. You can use any of the other Buggle methods.
• You should draw the colors and bagels exactly as shown in the rug.
• The buggle must finish in the same place it started, facing the same direction (i.e. EAST).
• You must create the rug pattern by using the 4 3x3 patterns shown above.
• The buggle must start in the bottom left corner of each pattern (as shown above) facing EAST. The buggle must finish in position to start the next pattern element as shown below:















• You must name the method that generates each of the four patterns above as pattern1, pattern2, pattern3, and pattern4, respectively. Each pattern should take two Color parameters. The first color is the color represented in black, and the second color is the color represented in yellow in the above pictures. Name your parameters c1 and c2. For example, the skeleton for the pattern1 method should look like this:

public void pattern1 (Color c1, Color c2) {
  // add code here
}

• You must also define the following methods:
• makeRug: this method creates the entire rug; it has no parameters.

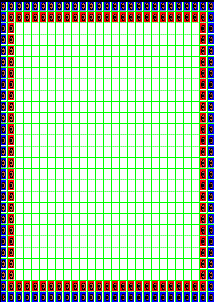

• outerRing: this method draws the outer ring; it has no parameters. It should have two Color variables. Name your variables c1 and c2. c1 represents the outer color of the border (blue in this rug) and c2 represents the inner color of the border (red in this rug). A snapshot of the outerRing is shown below:
















• innerPattern: this method draws the inner pattern which is repeated twice in the rug as shown below:

















This method should take two Color parameters named c1 and c2. c1 will represent the areas colored in black above and c2 will represent the areas colored in yellow above. Note that the actual rug uses the colors cyan and pink in one instantiation of the pattern and green and orange in the other instantiation of the pattern.



• innerRing: this method draws the border of the inner pattern. This method should also have two Color parameters. Follow the naming conventions as given for the other methods.














• innerRow: this method draws the pattern in the center of the innerPattern. This method should have two Color parameters.














• centerRow: this method draws the pattern in the center of the rug. This method should also have two Color parameters.
The six methods above must meet the invariant that the buggle must start and finish in the same cell, facing the same direction. You must assume that the buggle starts in the bottom left corner of each pattern (as shown above) facing EAST and should finish that way.

• The paintCell(Color c) method can be used to paint the cell under the buggle a certain color without having to move the buggle. For example,

sara.paintCell(Color.gray);
will paint the cell under sara gray. sara's brush state is not changed by the invocation of the paintCell method.
• The RugBuggle's brush is initially up before making the rug.
• You can temporarily modify the run method to test out small parts of your code. Comment out the invocation of makeRug and add what you want to test. Remember that you can comment out a line of code by adding // (two slashes) before that line of code.
• The row patterns are created by alternating patterns 3 and 4 like so (pattern3--pattern4--pattern3):


• You should feel free to add as many more methods as you see fit. There are many more opportunities for creating methods in this problem.
