Problem Set 1

Due: Tuesday, September 19 by 6:00 p.m.

[CS111 Home Page] [Syllabus] [Lecture Notes] [Assignments] [Programs] [Documentation] [Software Installation] [FAQ] [CS Dept.] [CWIS]

Reading

About this Problem Set

Download the ps1_programs folder from the download directory on nike (follow the Programs link in the menu at the top of this page). Make your modifications to the Writing.java and Rings.java files to solve the 2 problems defined in the two tasks below. The problems are intended to give you practice writing simple Java code. Both problems use the BuggleWorld microworld you have been studying in lecture.

How to turn in this Problem Set

Save the modified Writing.java and Rings.java files in the ps1_programs folder to be turned into your drop folder. Turn in a hardcopy of the modified Writing.java and Rings.java files.

Put the ps1_programs folder containing the completed source code into your ps1 drop folder on the cs111 server.

When submitting your hardcopies, we ask that you turn in only one package of materials. Please staple your files together with a cover page, and submit your hardcopy package by placing it in the box outside of Jennifer's office (E104, across from E101).

IMPORTANT NOTES:

  1. Pay careful attention to upper and lower case letters in the filenames.
  2. Once you have used Fetch to upload a file to the cs111 server, you should be sure to doublecheck that the file was actually uploaded. You can do this in Fetch by verifying that the file is now listed in your directory. Not only should you check that the file is listed, but you should check that it does not have a size of 0K. If the file isn't listed or if the size for the document is 0K, this means that there was an error in transferring it via Fetch and you must re-upload the document. When transferring a folder, you should check that its contents have been uploaded correctly. That is, you should be sure to check that every single file that you wish to submit has been uploaded correctly. Often times, although not always, you will see a message "Connection Failed" when there is an error in transferring your files.
  3. It is your responsibility to keep a personal back-up of every file that you submit electronically until you have received a grade for the assignment.

Task 1: Buggle Name Writing

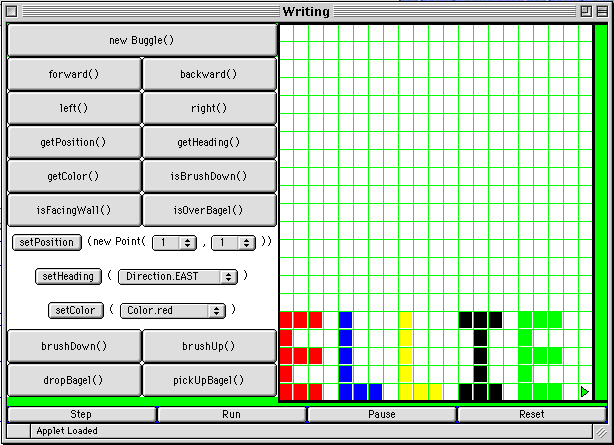

In lecture and lab, we have learned that in BuggleWorld, buggles can be used to make patterns or write letters within a grid. Below, a single buggle has written the name "ELLIE" in multiple colors:

.

Your assignment:

In the ps1_programs folder there is a file, Writing.java, which contains a Java program to create a single buggle ellie. Add code to the run method to write the name "ELLIE" as shown above.

You must conform to the following rules:

  1. You may not invoke the "setPosition" or "setHeading" methods.
  2. You should use the methods "brushUp" and "brushDown" where appropriate.
  3. Each letter should fit in a 3x5 grid, and should be separated from the next letter by one blank space.
  4. Ellie must draw the letters in the appropriate colors (use "setColor" to change colors).
  5. Ellie must end up in the position shown above, facing the correct direction (EAST).

Task 2: The Buggle Olympic Symbol

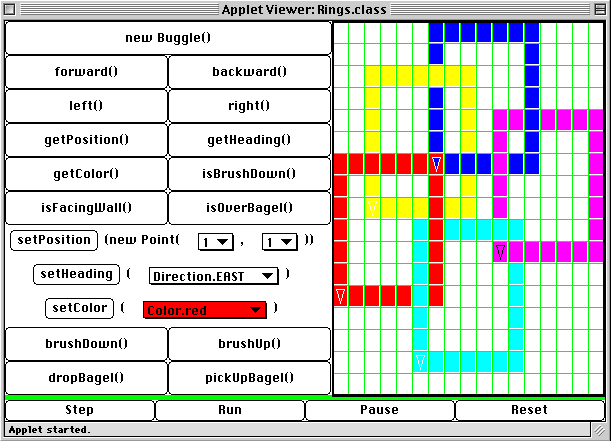

In BuggleWorld, the buggles regularly hold competitions in which they run the hurdles or traverse obstacle courses. Because they enjoy these competitions so much, they have decided to hold the first Buggle Olympics. To prepare for the big event, they have decided they need an appropriate symbol. They like the idea of interlocking rings, but due to the constraints of BuggleWorld, their rings have to be squares instead of circles. They have designed the following logo for their olympics:

Five buggles--becky, bobby, bertie, billy and benny--have agreed to help out in drawing the rings. becky wants to draw the red ring, bobby the yellow ring, bertie the blue ring, billy the cyan ring and benny the magenta ring. Each would prefer to draw only in one color and not change colors in the middle of their ring. Furthermore, they would prefer not to have to put their brushes up and down while drawing their rings. They have asked you to help them choreograph their movements so that the rings get drawn the correct way, with each ring overlapping the others as shown above.

Your assignment:

The file "Rings.java" contains the initial set-up for drawing the olympic rings. becky, bobby, bertie, billy and benny are all in the appropriate starting position and are the appropriate color. Fill in the java code to move each buggle around a 7 x 7 square, so that the rings overlap each other as shown.

You must conform to the following rules:

  1. You may not invoke setColor, brushUp, brushDown or setPosition methods beyond what is given you in the initial set-up file (i.e. setColor and setPosition are used only once for each buggle). The buggles use only the forward(n) and left() methods.
  2. Each buggle should traverse their square ring only once. They should not revisit any square they have already visited, except for the starting square, which they end on.
  3. Pay careful attention to the color of the squares where the rings intersect. You must get the buggle of the appropriate color to cross these intersections after the other buggle. This means that a buggle may have to stop in the middle of its drawing and wait for another buggle to complete a portion of its ring.
